Character rig requirements

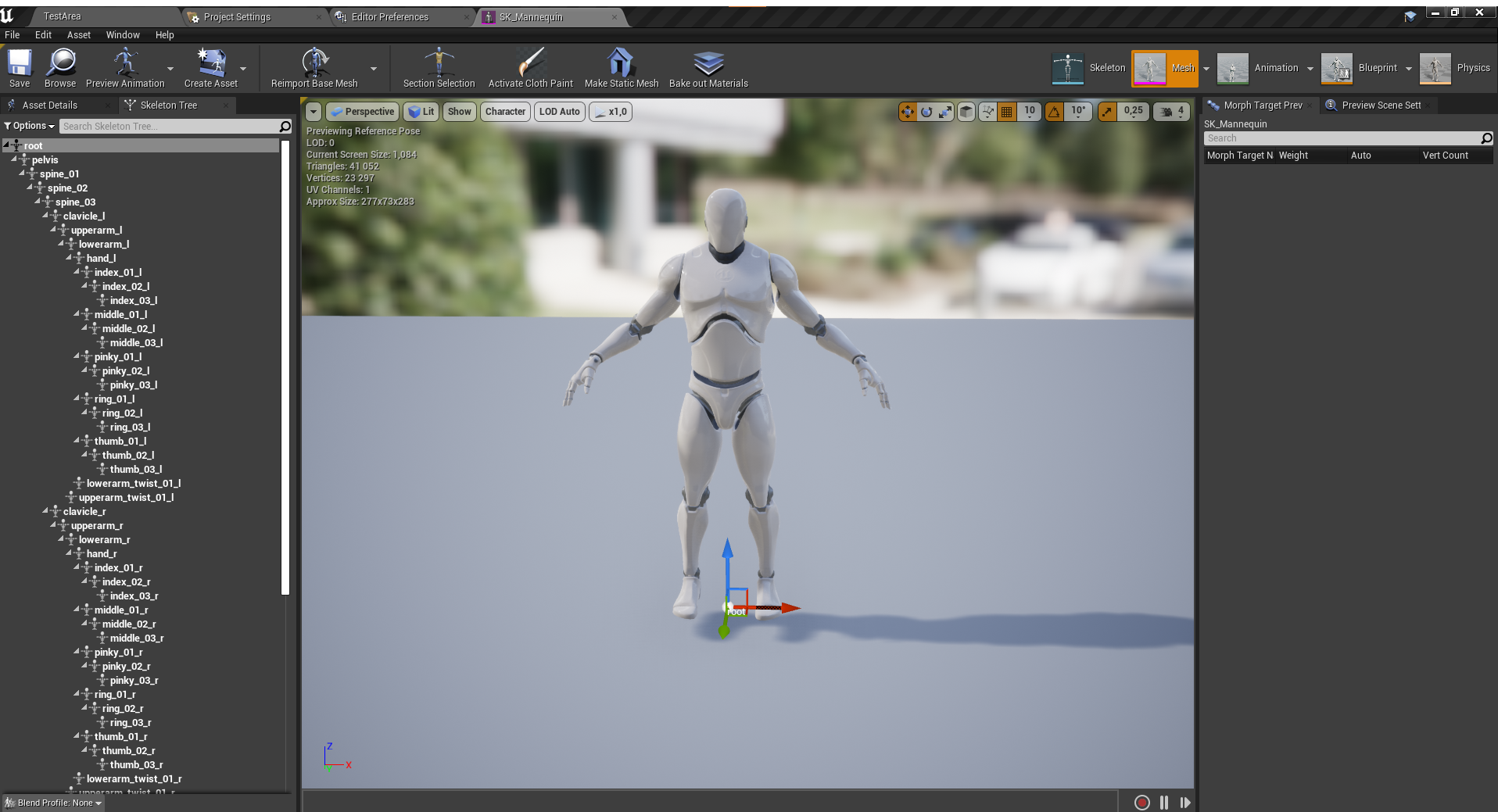

The character rig needs to have a “root”-bone. This root bone needs to have root motion, basically that the character moves through the scene and is not animated in place. The root bone is used by the motion matching system to have a character transform to match current skeletal positions against possible transitinos. The first bone in the hierarchy in Unreal needs to be the root joint, otherwise the character will not animate properly and rotations applied weirdly.
The root joint does not need to be called anything spesific like “root”, but needs to have the animation data to move the character about in the scene, and no rotation data.
If your character does not have a root bone, look into plugins/work-arounds to add one in for example Maya/Blender or your 3D software of choice.

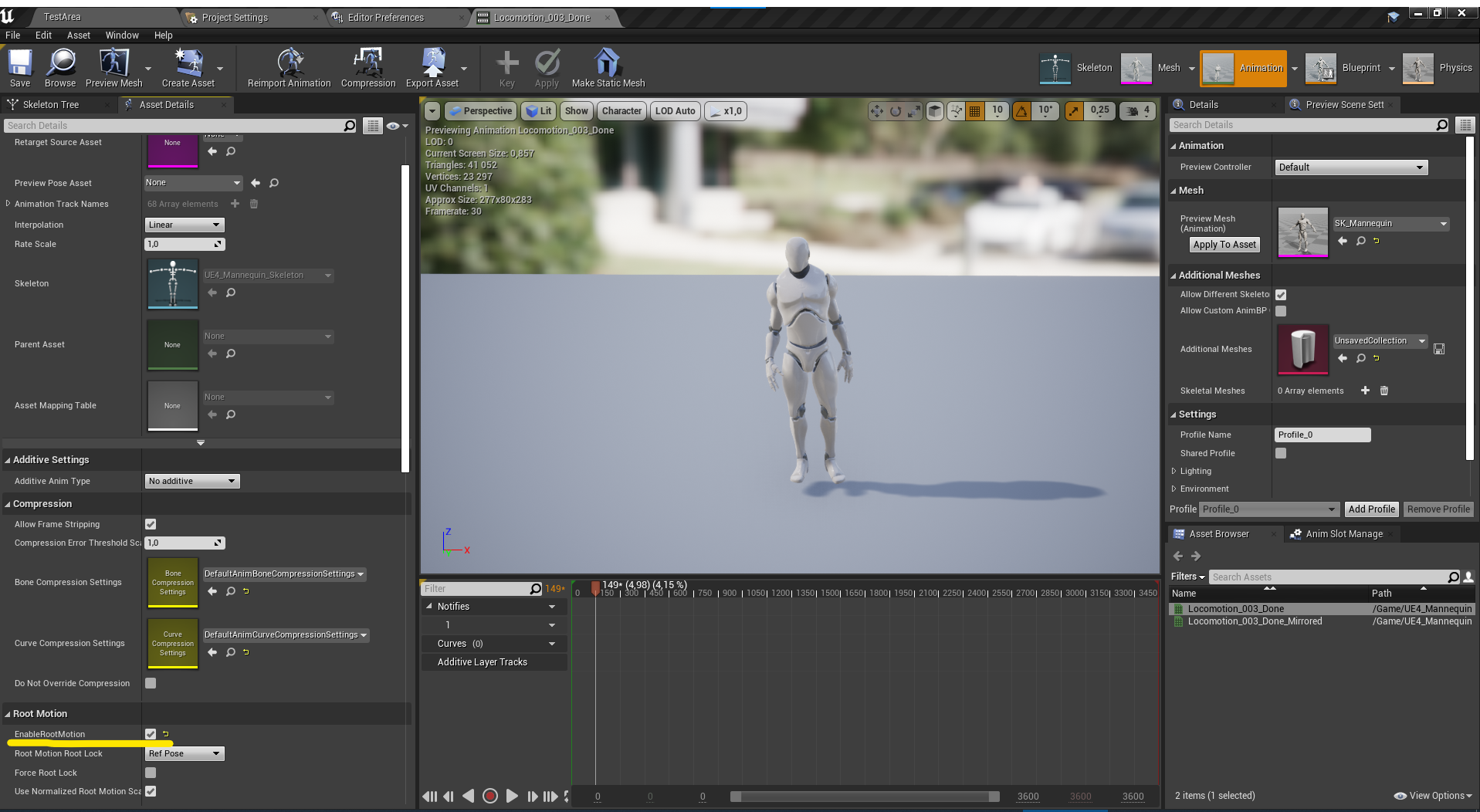

Every animation sequence in Unreal Engine needs to have “Enable Root Motion” enabled under the “Root Motion” category.
Animation guide
This guide is mostly intended for hand-keyed “traditionally” animated characters, but some tips might apply to motion capture and or other forms of animation creation.
When working with a limited set of animations you need to be quite exact in making the animation fit the needed character locomotion in the game-scene. Matching movement speed, turning capabilites and using the debug info to add more targeted animations where needed to get good coverage.
The system “prefers” longer sets of animations, to calculate velocity and speed. For example, avoid 1 second animations, but limit them to about 10-15 seconds. Having multiple 10-15 second animations gives insight into what the system is picking in a more easily readable way, given good naming conventions. If animations become too long it is also more difficult to organize & tag precisely, especially on smaller & low-res screens/monitors.

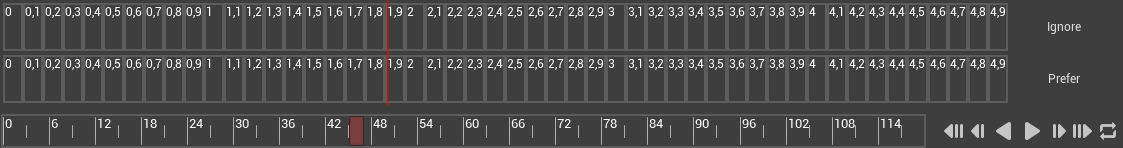

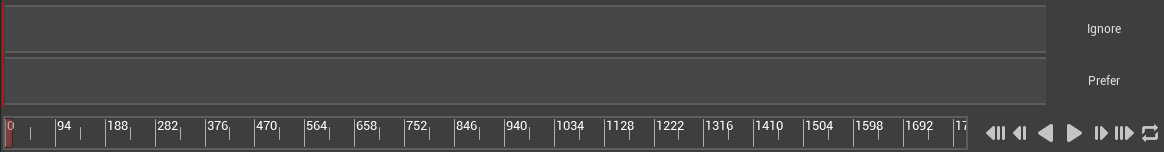

Picture above about 1800 frames of animation. Picture below split into 150 ish frames.
Think of creative ways to maximise animation data. Mirroring animations and providing variances give the system more animation data to pull from.

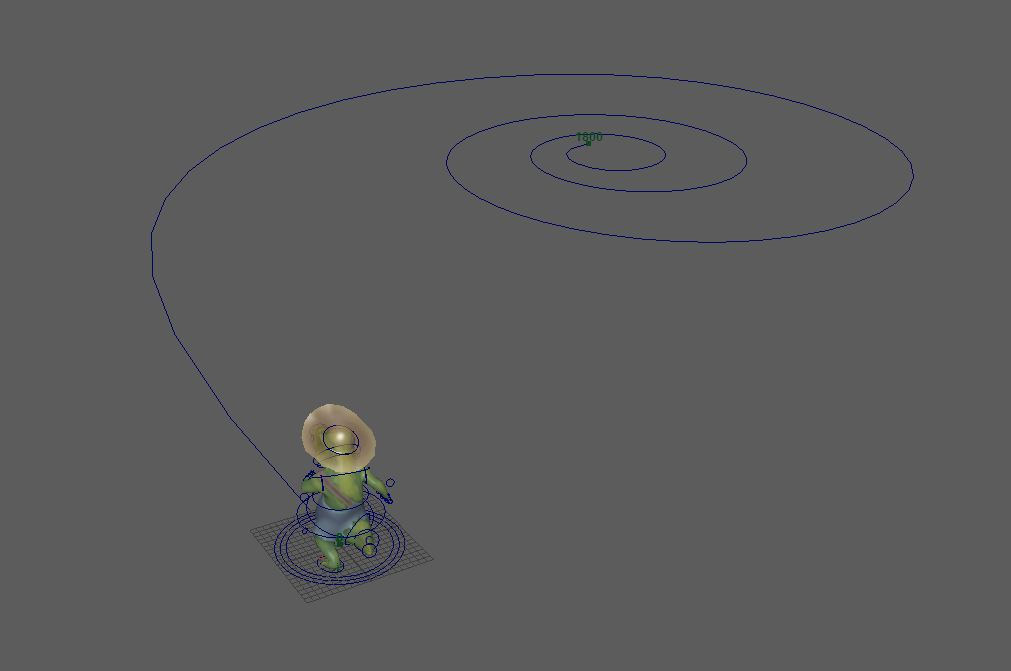

Example: A tip is to animate a character walking in a spiral for ground locomotion. Start with a one second loop, and loop the animation as the character follows a tightening spline/spiral. To maximize animation data mirror the animation, but not the spiral. Then mirror the spiral and mirrored the walk cycle again. This gives us a lot of animation data, specially turning/walking in different directions, with a one second walk cycle. The tighter you make the spiral, the tighter the turning radius for the character.
Also think of creative ways to “combine” sets of animations. Another one of our examples is a looped crouched walking animation can become anticipation for a jump, if only played for a short while before the jump.
